DDC Telecom Solutions Virginia Beach, VA

Full project portfolio

Every discipline, documented.

21 photographs spanning structure, DC power, fiber plant, ladder rack and cable routing, backup power, PDU work and general site execution across completed scopes. Facility and client identifiers are withheld; full detail available under NDA.

← Back to site
01

Racks & cabinets

Crew positioning a 42RU cabinet during on-site installation
On-site cabinet installationCrew setting a 42RU cabinet in place
Cabinets on pallets staged outside a facility for delivery
Delivery & stagingCabinets received and staged for install

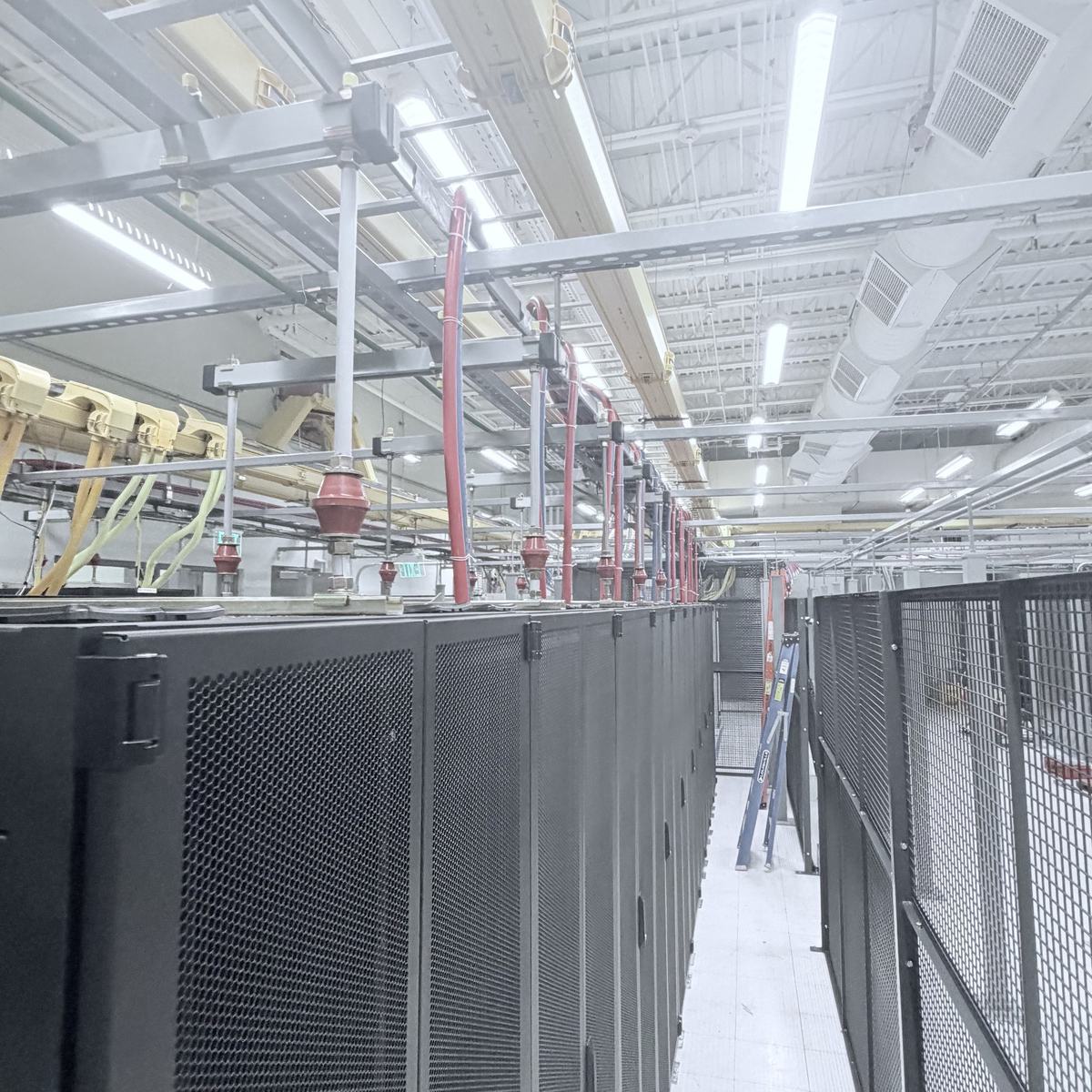

Finished row of cabinets with mesh cage containment
Finished cabinet rowCage containment along the cold aisle
02

Fiber optic plant

Single-mode fiber fan-out into an optical distribution frame
ODF fan-outSingle-mode pairs routed to the frame
LC-LC single-mode cassettes dressed and labeled in a rack
LC-LC cassettesDressed, labeled and rack-mounted
Fiber patch panel with labeled ports
Patch panel terminationRack-labeled per TIA-606-C
03

Ladder rack & cable routing

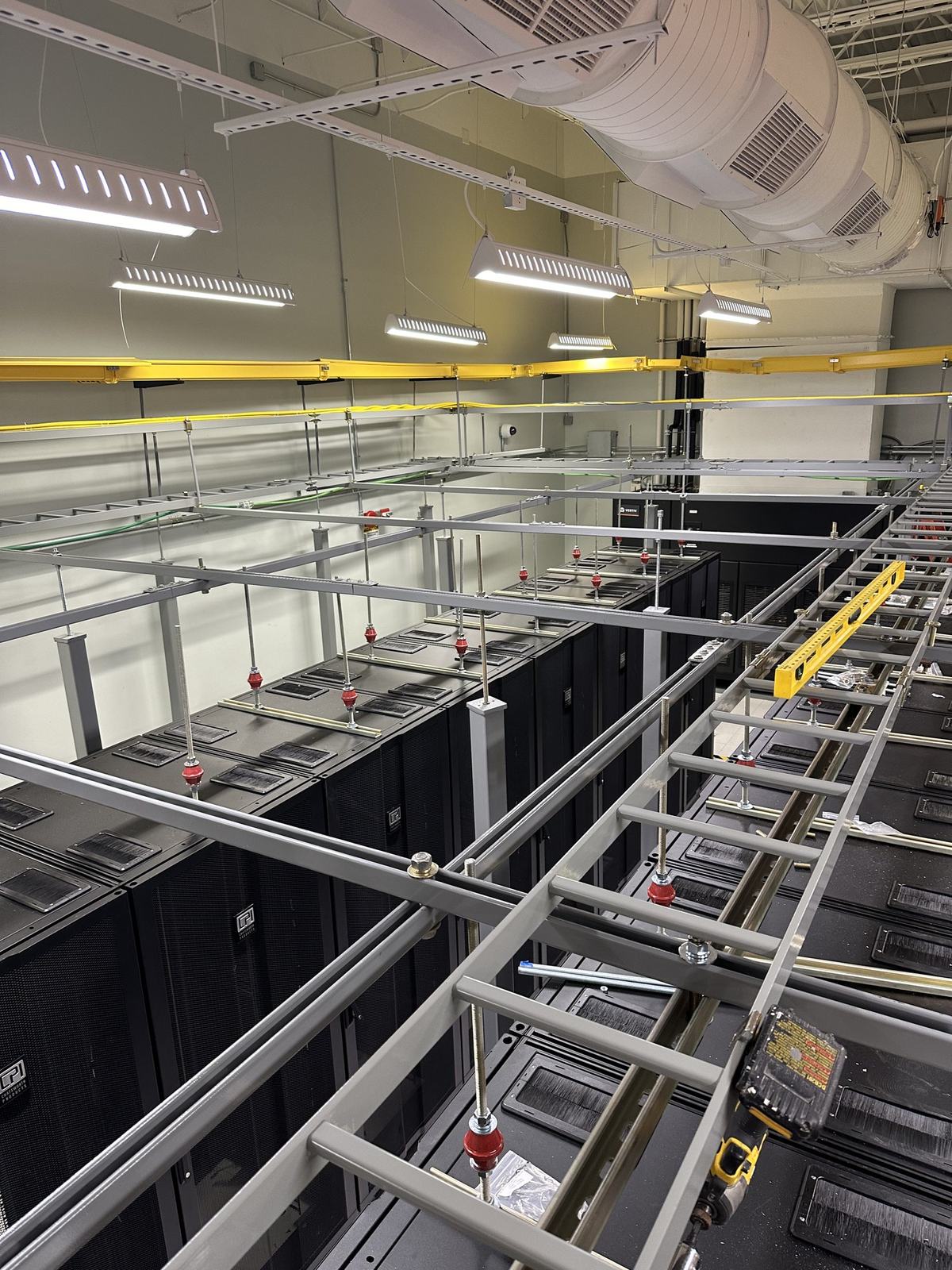

Overhead ladder rack installed across a row of cabinets
Overhead ladder rackSupport run across the cabinet row
Cage build-out in progress with overhead pathway under construction
Cage build-outOverhead pathway installation in progress
Level tool verifying alignment of a cable ladder rack
Alignment checkLevel verification before final anchoring
04

Inverters & transformers

Crew positioning a cabinet on ladders during installation
Cabinet positioningOn-site maneuvering and set

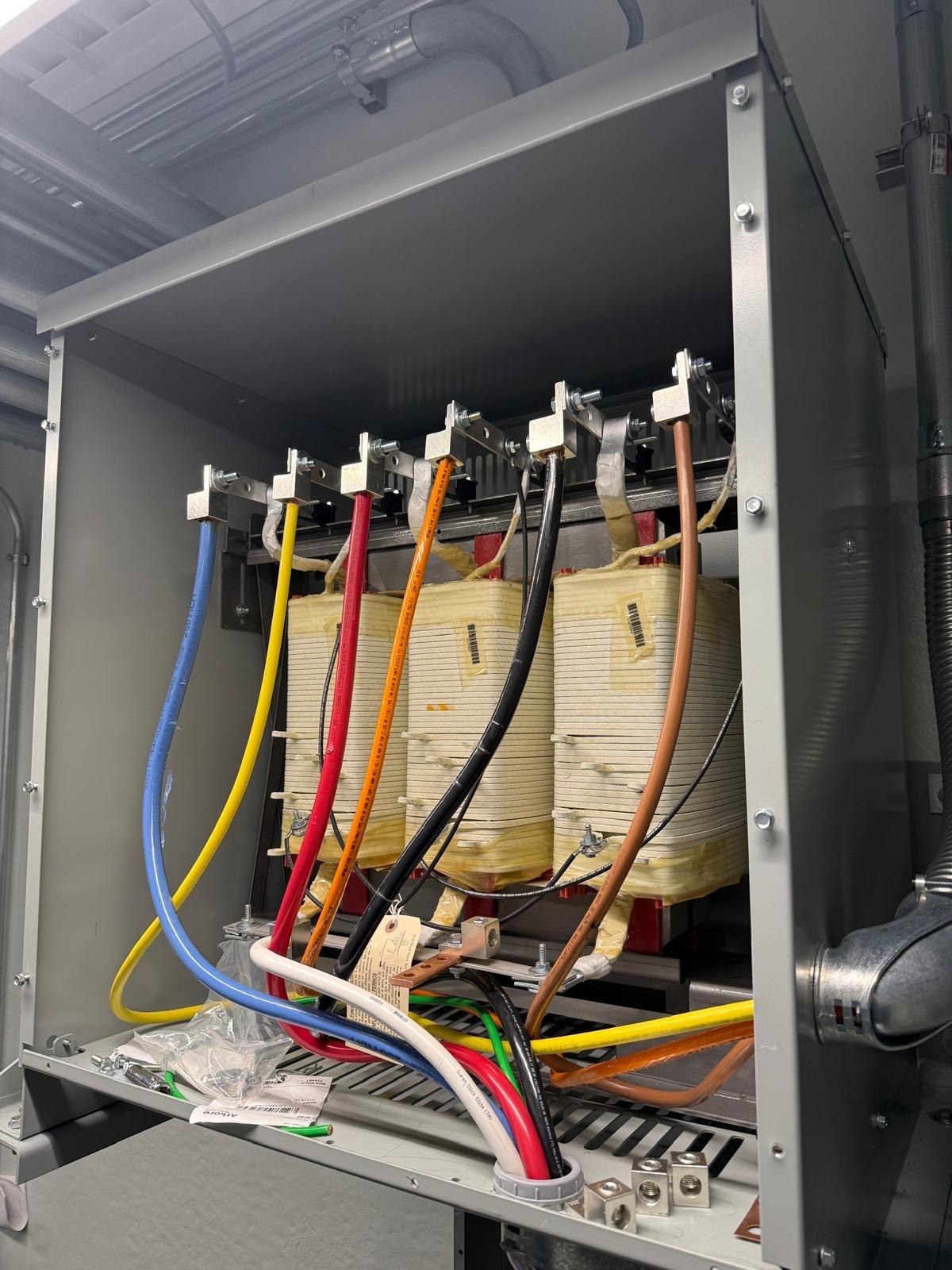

Dry-type transformer internal wiring with color-coded phase leads
Transformer wiringPhase terminals identified and insulated
Technician installing EMT conduit and feeder on a wall
Conduit & feeder installationEMT routing to panel termination
Electrical distribution panel with breakers and interconnected feeders
Distribution panelBreakers and protective devices
05

DC power & PDU

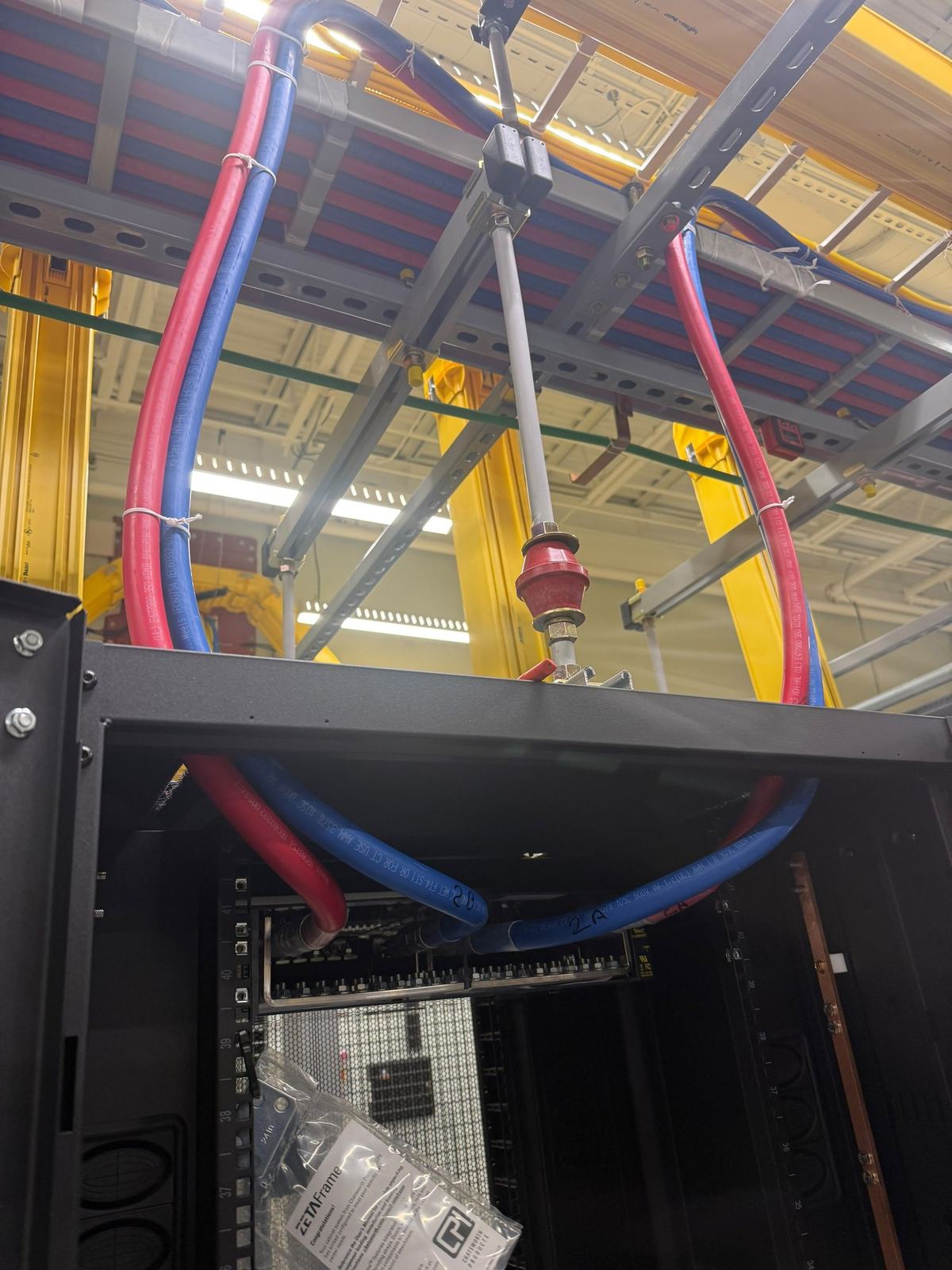

DC power feeders landed at the top of a server rack
Top-of-rack DC feedFeeders landed and dressed

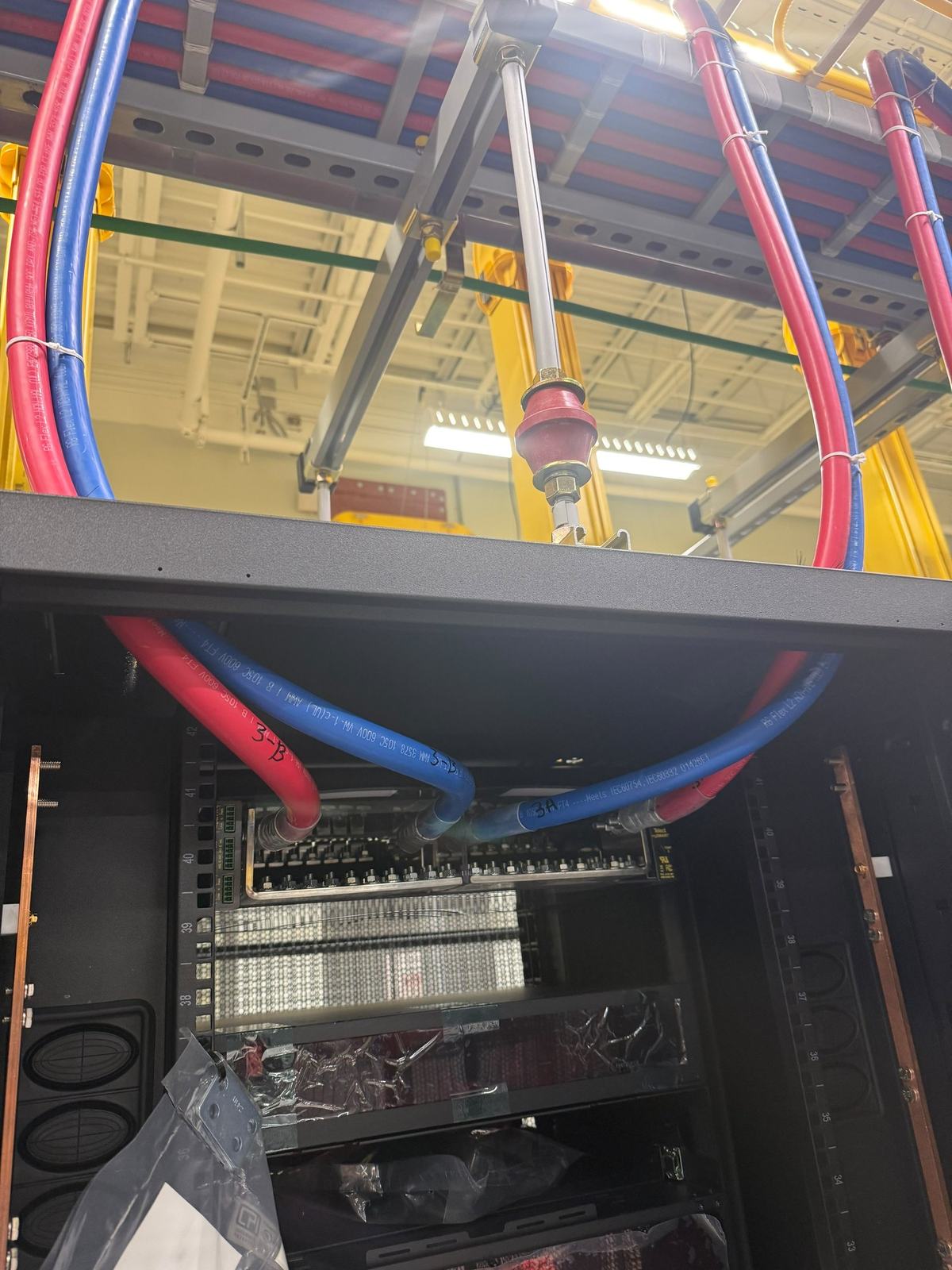

Red and blue DC feeders terminated on a copper busbar
Busbar terminationsFeeder pair on compression lugs
Field technician completing DC panel wiring work
Panel workField technician on DC distribution
06

General site work

Vertical DC busbar and breaker frame with red and blue feeders
DC busbar frameVertical breaker frame, feeder terminations

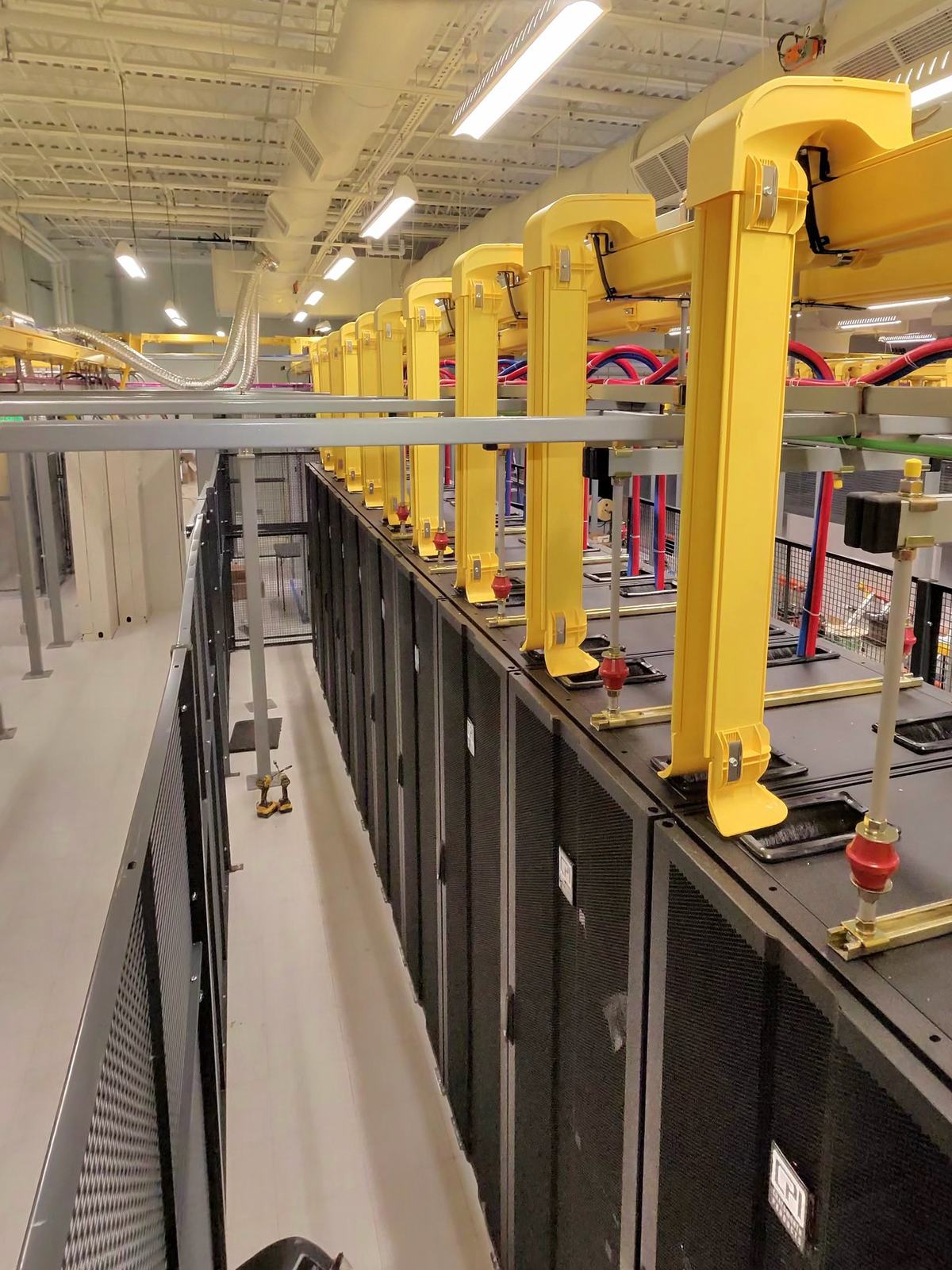

Overhead power whips above a row of cabinets
Overhead power whipsRouted above the cabinet row
07

VAB1 site

Caged suite with mesh partitions and cabinet rows
Caged suiteMesh partitions and cabinet rows

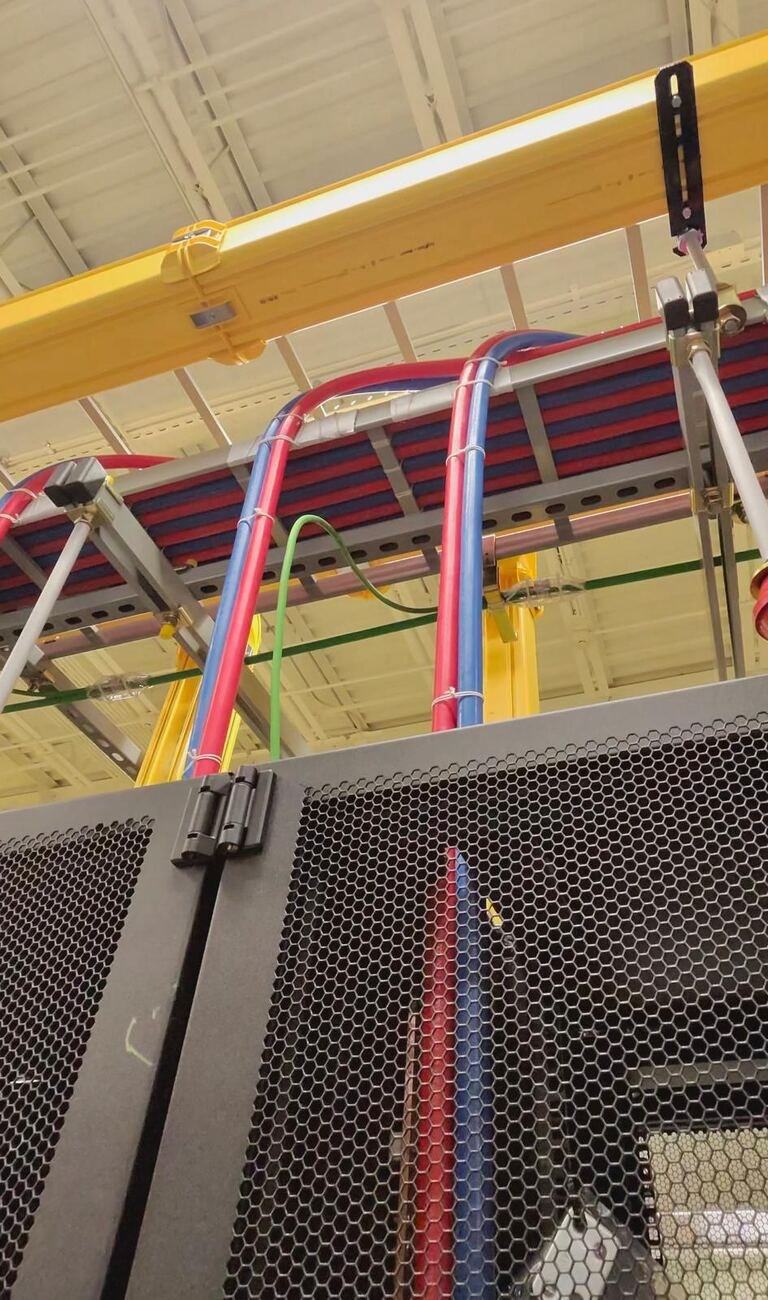

Overhead feeder routing into a cabinet
Feeder routingOverhead run into the cabinet
08

Fiber runner & overhead pathway

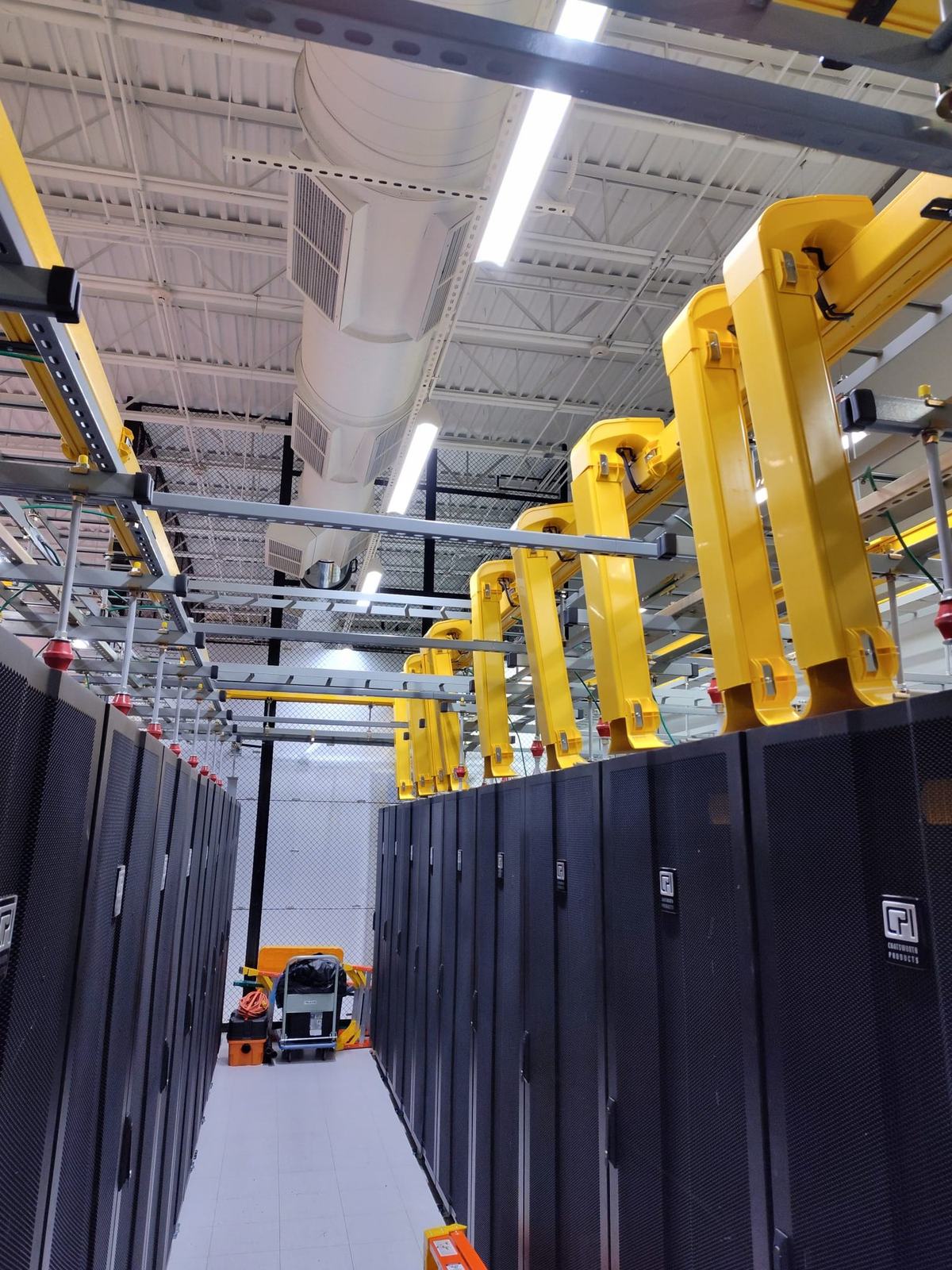

Rows of overhead fiber runner above a cabinet aisle
Overhead fiber runnerRunner rows above the cabinet aisle
